Description

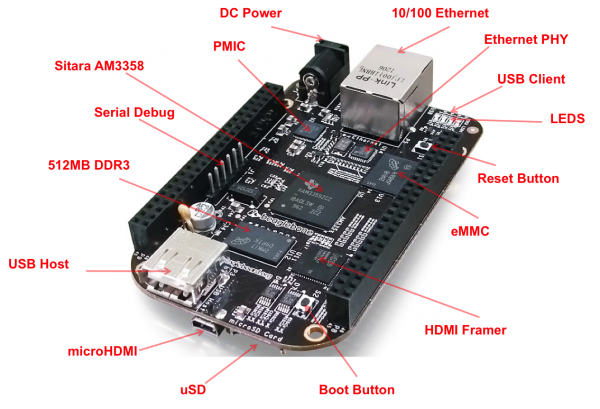

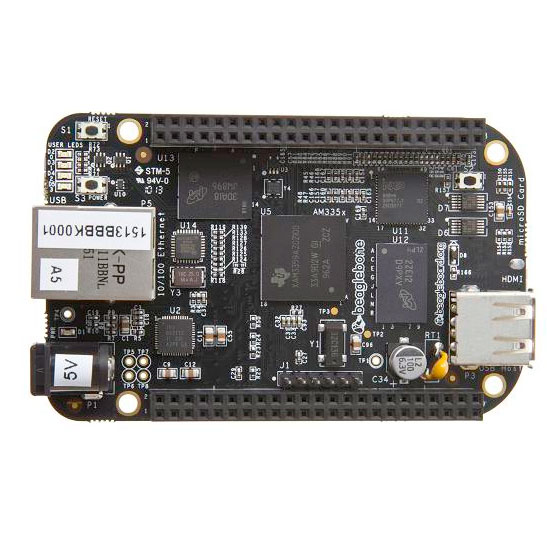

The BBONE-BLACK-4G is a BeagleBone Black development kit for developers and avid hobbyist. It is a lower cost, high expansion focused BeagleBoard using a low cost Sitara AM3358BZCZ100 Cortex A8 ARM processor from Texas Instruments. The board boots Linux in under 10sec and the user can get started on development in less than 5 min with just a single USB cable. It is similar to the Beaglebone, but with some features removed and some features added.
- USB client for power and communications
- 2 x 46 pin headers
- USB host interface
- Ethernet and HDMI interface
- 512MB DDR3 RAM
- 4GB 8bit eMMC on board flash storage
- Optional on board 20 pin CTI JTAG, serial header
- Most BeagleBone capes are cross compatible
Applications
Robotics, Motor Drive & Control, Communications & Networking, Hobby & Education
Contents
BB Black board, Mini USB to USB type A cable, Instruction card
Footnotes
Warranted against defects in materials & workmanship for period of 90 days from purchase, doesn’t cover problems such as improper use, modifications, exposure to water, excessive voltages, accidents.
Warnings
Do not apply voltage to any I/O pin when power is not supplied to the board. it will damage the processor.
Optional Modules

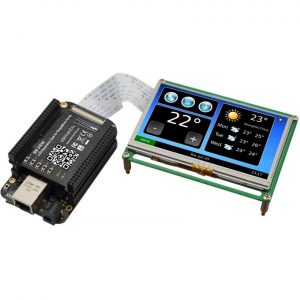

- BB-VIEW CAPE：An extension board For Beaglebon Black add LCD And I/O
- LCD8000-70T (Must work with BB-VIEW For Beaglebone Black) 800*480 LCD With Resistive Touch
