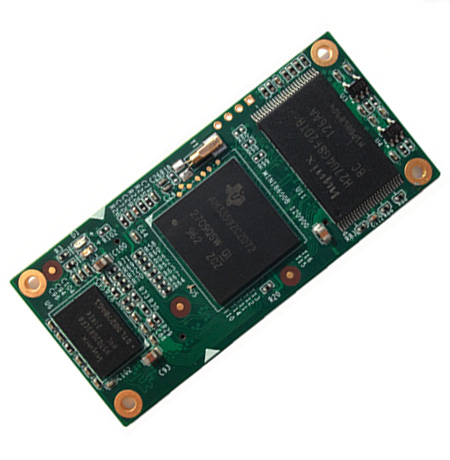

Mini8600B

Original price was: $89.00.Current price is: $69.00.

Features:

  • CPU:TI AM3358 ARM Cortex-A8 microprocessor
  • DDR3L:512MB
  • Storage:512MB
  • OS:Linux3.2,Linux4.1

Github: https://github.com/EMTOP-TECH/MINI8600B



Datasheet

UserManual

Schematic

99 in stock

Quantity Discount (%) Price
1 - 99 — $69.00
100+ 14.49 % $59.00
x
Category: SKU: Mini8600B

Description

Overview:

Measuring 60mm by 27mm, a controller board based on TI’s Sitara AM3358 ARM Cortex-A8 high performance processor. The tiny module integrates 2*256MBytes DDR3 SDRAM and 512Mbytes NAND Flash, and uses two 0.4mm space 2*40-pin board-toboard male expansion connectors.

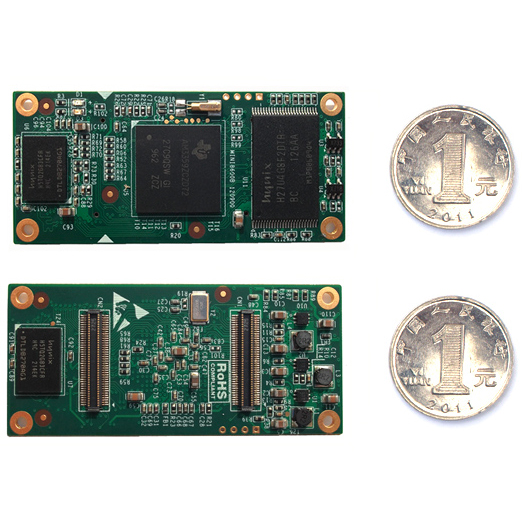

Top-view of SOM-AM335x-MM (Part NO: Mini8600B) CPU Module

SOM-AM335x-MM

Bottom-view of SOM-AM335x-MM (Part NO: Mini8600B) CPU Module

SOM-AM335x-MM

Embest has designed a single board computer SOM-AM335x-MM with standard baseboard (Part NO: SBC8600B) which has an expansion board to carry the SOM-AM335x-MM (Part NO: Mini8600B). The flexible design allows the fast and easy way of realizing and upgrading the controller’s capabilities. In additional to those features offered by SOM-AM335x-MM (Part NO: Mini8600B), the  SOM-AM335x-MM with standard baseboard (Part NO: SBC8600B)features 5 serial ports (including 2 RS232 and 3 TTL), 2 USB Host and 1 USB OTG, 2 Ethernet ports, CAN, RS485, LCD, Touch screen, Audio, ADC and more other peripherals. The SBC8600B is a ready-to-run platform to support for Linux 3.2.0, Android 4.0 and WinCE 7 operating systems.(No support WinCE for industrial version).

SOM-AM335x-MM with standard baseboard (Part NO: SBC8600B)

SOM-AM335x-MM

 System block diagram:

SOM-AM335x-MM

Dimension:

SOM-AM335x-MM

Hardware Features:

  Processor/Memory:

  • TI AM3358 ARM Cortex-A8 microprocessor

    – 1GHz ARM Cortex-A8 32-bit RISC MPU

    – NEON™ SIMD Coprocessor

    – 32KB/32KB of L1 Instruction/Data Cache with Single-Error Detection (parity)

    – 256KB of L2 Cache with Error Correcting Code (ECC)

    – SGX530 Graphics Engine

    – Programmable Real-Time Unit Subsystem

  • 2*256MByte DDR3 SDRAM

  • 512MByte NAND Flash

 Expansion Interfaces and Signals Routed to Pins:

  • Two 0.4mm space 2*40-pin board-to-board male expansion connectors

  • TFT LCD Interface (support 24-bpp parallel RGB Interface LCD)

  • 2 * USB 2.0 OTG Ports With Integrated PHY, High-Speed

  • 3 * inter-integrated circuit (I2C) Bus interfaces

  • 6 * UART interfaces;

  • 1 * SPI interface;

  • Two 10/100/1000 Mb/s Ethernet MAC (EMAC) with Management Data Input/Output

  • (MDIO) module;

  • A multichannel audio serial ports (McASP);

  • 8-channel 12-bit ADC interfaces;

  • Two 4-line SD/MMC card interfaces;

  • GPMC bus

 Electrical Features:

  • Dimensions: 60.0 mm x 27.0 mm

  • PCB Layers: 8 layers

  • Temperature: 0~70 Celsius ( commerial )

     -40 ~ 85 Celsius（industrial）

  • Humidity Range: 20% ~ 90%

  • Input Voltage: 3.3V

Embest SOM-AM335x-MM (Part NO: Mini8600B) CPU Module is connected to the carrier board via two 0.4mm space 2*40-pin board-to-board male expansion connectors.



The connector marked in red below is CN1; table 1-1 described the pin signals of CN1 connector.

SOM-AM335x-MM

CN1

Pin

 Signal Description

1

 GND GND

2

 VDDS_RTC Supply voltage for RTC

3

 CLK_OUT1 Clock out1

4

 CLK_OUT2 Clock out2

5

 MMC0_DAT0 MMC0 data bus

6

 MMC0_DAT1 MMC0 data bus

7

 MMC0_DAT2 MMC0 data bus

8

 GLOBLE_RESETN SYS_RESET IN/ OUTPUT

9

 MMC0_DAT3 MMC0 data bus

10

 AM335X_PWRON_RESETN CPU PWRON Reset

11

 GND GND

12

 GND GND

13

 AM355X_PRU_UART0_CTS PRU UART0 Clear To Send

14

 AM355X_PRU_UART0_RX PRU UART0 receive data

15

 AM355X_PRU_UART0_RTS PRU UART0 request to send

16

 AM355X_PRU_UART0_TX PRU UART0 transmit data

17

 AM355X_UART0_RX UART0 receive data

18

 AM355X_UART3_RX UART3 receive data

19

 AM355X_UART0_TX UART0 transmit data

20

 AM355X_UART3_TX UART3 transmit data

21

 AM355X_CAN0_RX CAN0 receive data

22

 AM355X_I2C0_SDA I2C0 master serial data

23

 AM355X_CAN0_TX CAN0 transmit data

24

 AM355X_I2C0_SCL I2C0 master serial clock

25

 AM355X_UART4_RX UART4 receive data

26

 AM355X_UART1_RX UART1 receive data

27

 AM355X_UART4_TX UART4 transmit data

28

 AM355X_UART1_TX UART1 transmit data

29

 GND GND

30

 GND GND

31

 MII1_COL  MII1 collision detect

32

 AM355X_USB0_DRVVBUS USB0 controller VBUS control output

33

 MII1_TX_CLK MII1 transmit clock

34

 AM355X_USB1_DRVVBUS USB1 controller VBUS control output

35

 MII1_TX_EN MII1 transmit enable

36

 MII1_REF_CLK MII1 reference clock

37

 MII1_TXD3 MII1 transmit data

38

 MII1_CRS MII1 carrier sense

39

 MII1_TXD2 MII1 transmit data

40

 MII1_RX_ER MII1 receive data error

41

 MII1_TXD1 MII1 transmit data

42

 MII1_RX_DV MII1 receive data valid

43

 MII1_TXD0 MII1 transmit data

44

 MII1_RX_CLK MII1 receive clock

45

 MII_MDIO MII MDIO DATA

46

 MII1_RXD3 MII1 receive data

47

 MII_MDC MII MDIO CLK

48

 MII1_RXD2 MII1 receive data

49

 GND GND

50

 MII1_RXD1 MII1 receive data

51

 AM355X_USB0_DM USB0 DM-

52

 MII1_RXD0 MII1 receive data

53

 AM355X_USB0_DP USB0 DP

54

 MMC0_CMD MMC0 Command Signal

55

 GND GND

56

 USB0_VBUS USB0 bus voltage

57

 AM355X_USB1_DM USB1 data-

58

 AM355X_USB1_ID USB1 ID

59

 AM355X_USB1_DP USB1 data+

60

 AM355X_USB0_ID USB0 ID

61

 GND GND

62

 USB1_VBUS USB1 bus voltage

63

 GPMC_A0 GPMC address

64

 GPMC_A7 GPMC address

65

 GPMC_A5 GPMC address

66

 GPMC_A11 GPMC address

67

 GPMC_A4 GPMC address

68

 GPMC_A10 GPMC address

69

 GPMC_A3 GPMC address

70

 GPMC_A9 GPMC address

71

 GPMC_A2 GPMC address

72

 GPMC_A8 GPMC address

73

 GPMC_A6 GPMC address

74

 GPMC_A1 GPMC address

75

 GND GND

76

 GND GND

77

 VDD_3V3 Power

78

 VDD_3V3 Power

79

 VDD_3V3 Power

80

 VDD_3V3 Power

The connector marked in red below is CN2; table 1-2 described the pin signals of CN2 connector.

SOM-AM335x-MM

CN2

Pin

 Signal Description

1

 GND GND

2

 GND GND

3

 MCASP0_AHCLKX MCASP0 transmit master clock

4

 MCASP0_ACLKX MCASP0 transmit bit clock

5

 MCASP0_FSX MCASP0 transmit frame sync

6

 MCASP0_AXR0 MCASP0 serial data(I/O)

7

 MCASP0_AHCLKR MCASP0 receiver master clock

8

 MMC0_CLK MMC0 clock

9

 MCASP0_FSR MCASP0 receive frame sync

10

 MCASP0_AXR1 MCASP0 serial data(I/O)

11

 GND GND

12

 GND GND

13

 VDDA_ADC Supply voltage range for ADC

14

 AM355X_ADC0 ADC0

15

 AM355X_ADC1 ADC1

16

 AM355X_ADC2 ADC2

17

 AM355X_ADC3 ADC3

18

 AM355X_ADC4 ADC4

19

 AM355X_ADC5 ADC5

20

 AM355X_ADC6 ADC6

21

 AM355X_ADC7 ADC7

22

 GND_ADC GND ADC

23

 GND GND

24

 GND GND

25

 LCD_DATA1 LCD data bus

26

 LCD_DATA12 LCD data bus

27

 LCD_DATA0 LCD data bus

28

 LCD_DATA10 LCD data bus

29

 LCD_DATA5 LCD data bus

30

 LCD_DATA13 LCD data bus

31

 LCD_DATA4 LCD data bus

32

 LCD_DATA11 LCD data bus

33

 LCD_DATA6 LCD data bus

34

 LCD_DATA14 LCD data bus

35

 LCD_DATA8 LCD data bus

36

 LCD_VSYNC LCD vertical sync

37

 GND GND

38

 GND GND

39

 LCD_DATA9 LCD data bus

40

 LCD_PCLK LCD pixel clock

41

 LCD_DATA15 LCD data bus

42

 GPMC_AD11 GPMC address & data

43

 LCD_DATA3 LCD data bus

44

 GPMC_AD15 GPMC address & data

45

 LCD_DATA2 LCD data bus

46

 GPMC_AD14 GPMC address & data

47

 LCD_DATA7 LCD data bus

48

 GPMC_WAIT0 GPMC wait0

49

 LCD_HSYNC LCD horizontal sync

50

 GPMC_BEN1 GPMC byte enable 1

51

 GND GND

52

 GND GND

53

 LCD_EN LCD AC bias enable chip select

54

 GPMC_WPN GPMC write protect

55

 GPMC_AD13 GPMC address & data

56

 GPMC_CSN3 GPMC chip select

57

 GPMC_AD9 GPMC address & data

58

 GPMC_CSN2 GPMC chip select

59

 GPMC_AD10 GPMC address & data

60

 GPMC_CLK GPMC clock

61

 GPMC_AD8 GPMC address & data

62

 GPMC_AD6 GPMC address & data

63

 GPMC_AD12 GPMC address & data

64

 GND GND

65

 GND GND

66

 GPMC_CSN1 GPMC chip select1

67

 GPMC_ADVN_ALE GPMC address valid/address latch enable

68

 GPMC_AD5 GPMC address & data

69

 GPMC_BEN0_CLE GPMC byte enable 0/Command latch enable

70

 GPMC_AD4 GPMC address & data

71

 GPMC_OEN_REN GPMC output /read enable

72

 GPMC_AD1 GPMC address & data

73

 GPMC_AD2 GPMC address & data

74

 GPMC_AD0 GPMC address & data

75

 GPMC_AD3 GPMC address & data

76

 GPMC_CSN0 GPMC chip select0

77

 GPMC_AD7 GPMC address & data

78

 GPMC_WEN GPMC write enable

79

 GND GND

80

 GND GND

Software Features:

OS

Item

Remark

Linux

BIOS

SPL
(First boot loader)

NAND

MMC/SD

FAT

U-boot
(Second boot loader)

NAND

MMC/SD

FAT

NET

Kernel

Linux-3.2.0

Supports ROM/CRAM/EXT2/EXT3/FAT/NFS/ JFFS2/UBIFS file systems

Driver

 NAND Flash, SDRAM, Serial port, RTC, Ethernet, TFT LCD, Touch screen, TF card, USB OTG, Audio input/output, LED, Key, CAN, RS485, Power Management (backlight, PWM, ADC)
(provided with source code)
2D/3D (not provided with source code)

Android

Kernel

Linux-3.2.0

Gingerbread

Driver

 NAND Flash, SDRAM, Serial port, RTC, Ethernet, TFT LCD, Touch screen, TF card, USB OTG, Audio input/output, LED, Key, Power Management (backlight, PWM)
(provided with source code)
2D/3D (not provided with source code)

WinCE7

BIOS

X-loader
(First boot loader)

NAND

MMC/SD

FAT

EBOOT
(Second boot loader)

NAND

MMC/SD

FAT

NET

OAL

OAL module

Boot parameter

KILT(EMAC)

Serial debug

REBOOT

Watchdog

RTC

Kernel profiler

System timer

Interrupt controller

MMU

Driver

 NAND Flash, SDRAM, Serial port, RTC, Ethernet, TFT LCD, Touch screen, TF card, USB OTG, Audio input/output, LED, Key, RS485, Power Management (backlight)
(provided with source code)
CAN, 2D/3D (not provided with source code)

Applications:

  • Intelligent Display Terminal

  • Medical Equipment

  • Smart Appliances

  • Alternative Energy Device

  • Intelligent Display Terminal

  • Blood analyzer

  • Robotic Arm

  • Charging Station
