SOM-ET-AM62
1，Description

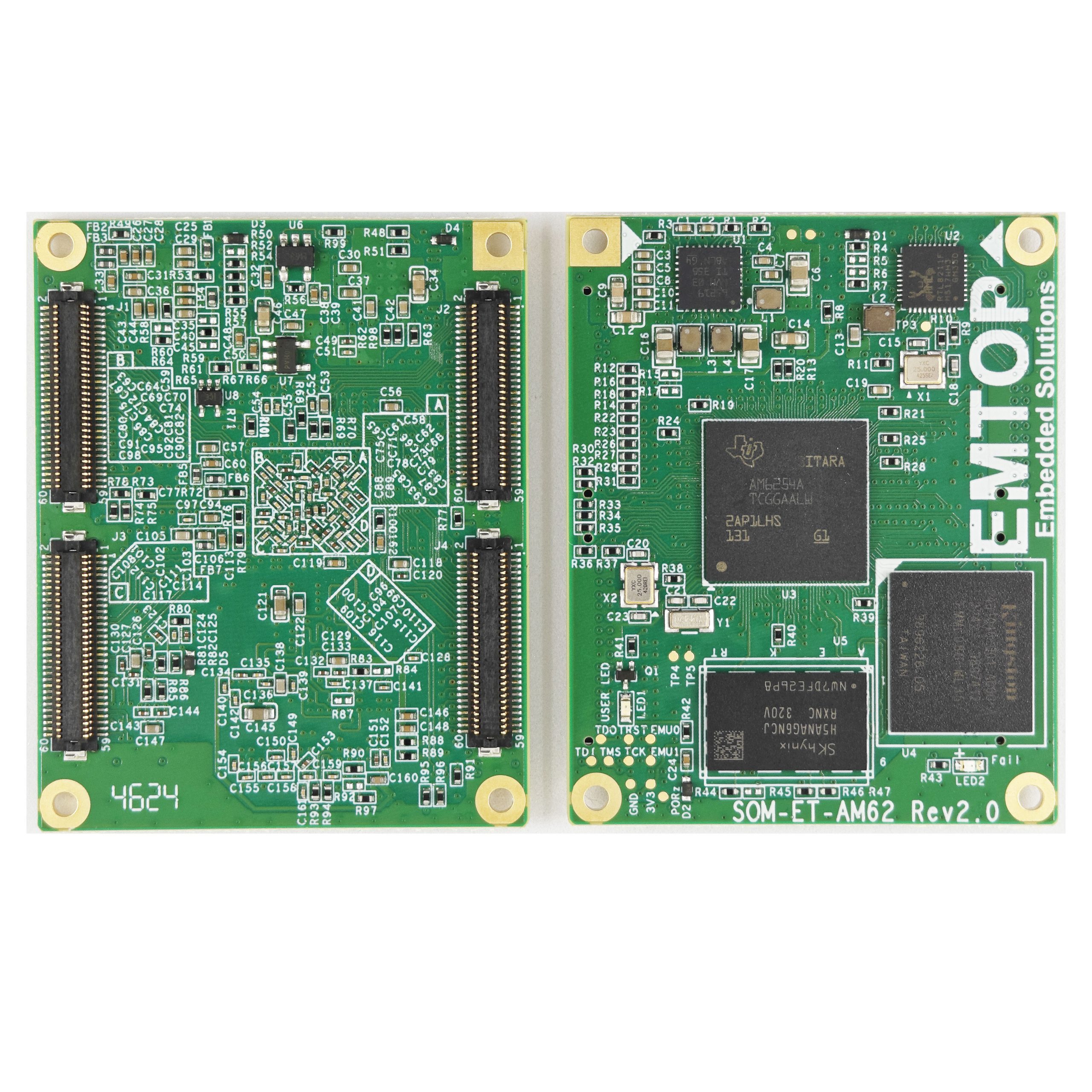

The SOM-ET-AM62 is a core board launched by Shenzhen EMTOP Technology Co., Ltd., based on the TI AM623x/AM625x series embedded CPU. It adopts a core board + baseboard design, with an ultra-small size of 50x40mm, complete interface design, and rich peripheral interfaces, facilitating users to directly integrate project development.
The TI AM623x/AM625x is a collection of high-performance, ultra-efficient processors, which is the latest high-performance, low-power processor collection launched by TI. It adopts up to 4x ARM Cortex-A 53 cores, with a maximum operating speed of 1.4G Hz, and integrates a Cortex M4F MCU with a frequency of up to 400MHz and an R5F real-time processing unit. The TI AM623x/ AM625x application processors include an integrated power management module, reducing the complexity of external power supplies and simplifying power-up sequencing, and a graphics processor (AM625x) compliant with OpenGL ES3.1 and Vulkan 1.2, along with a PRU subsystem. At the same time, the AM62XX integrates a rich set of peripheral resources, depending on the positioning of the CPU sub-model, with up to 1 *LCD controller, 1* LVDS, 2 *RGMII, 2*OTG interfaces, 3* CAN -FD, 1 *CS interface, 3*SPI, 3*SDIO, 9*UART, 6*I2C, 5*SPI, 3*MCASP, 3*PWM, and 2x PRU subsystems.
The EVK -AM62 is a high-cost performance, easy-to-use, and stable development kit designed by Shenzhen EMTOP Technology Co., Ltd. based on the interface characteristics and function definitions of the TI AM625x and AM623x series CPUs. The target application scenarios are as follows:
- IoT Gateway
- Human-Machine Interface
- Home Energy Management System
- Smart Energy Information Concentrator
- Smart Industrial Control System
- Electronic POS Equipment
- Medical Equipment
- Printers and 2D Scanners
Note: The peripheral interface characteristics listed above are theoretical quantities. The actual peripheral resources of the SOM-ET-AM62 are subject to the interface description.
2, Features
| Feature | Details |
|
SOM-ET-AM62 |
|
|
CPU |
Up to 4x ARM Cortex-A53, including:
• Up to 1400MHz • 32 KB L1 Instruction Cache • 32 KB L1 Data Cache • Single-core ARM Cortec-M4F up to 400MHz • Display Subsystem • 3D Graphics Processing Unit • One Camera Serial Interface • DDR Subsystem |
|
Memory and storage |
|
|
DDR SDRAM |
• 2GB DDR4 SDRAM (16-bit bus width)
• Maximum 4GB support • 1600MHz maximum DDR clock |
|
eMMC
|
• 8GB eMMC flash memory Default
• 8-bits MMC mode • 4~128GB storage option |
| Expandable flash (MicroSD) | • Runs at 4-bits
• Supports system boot from SD card |
|
Network & Wireless |
|
| Ethernet | • 2x 10/100/1000 Mbps Ethernet Controller |
|
Hardware Interface |
|
|
I/O connectivity |
• 1x 8bit MMC
• 1x 4bit MMC • 1x MCASP • 1x GPMC • 1x MAC • 1x GBE • 2x USB OTG • 2x SPI • 3x CAN • 6x UART |
| Display Interfaces | • 1x 16bits RGB LCD
• 1x Dual Chennel LVDS |
| Camera | • 1x MIPI CSI |
3，Order Information
| Part Number | CPU | DDR4 | EMMC | WIFI/BT | Temperature | Price 1k | 100PCS | 30PCS | MOQ |
| SOM-ET-AM62-D2M80-C | AM6254 | 2GB | 8GB | No | 0°C-70° | USD42 | USD49 | USD56 | 1 |
| SOM-ET-AM62-D4M32-C | AM6254 | 4GB | 32GB | No | 0°C-70° | USD49 | USD56 | USD62 | 100 |
| SOM-ET-AM62-D2M80-I | AM6254 | 2GB | 8GB | No | -45°C-85° | USD49 | USD56 | USD62 | 100 |
| EVK-ET-AM62-D2M8-C | AM6254 | 2GB | 8GB | No | 0°C-70° | USD129 | USD136 | USD139 | 1 |
